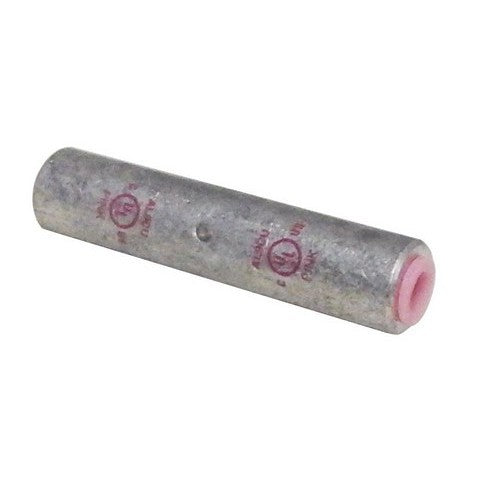

Morris Products 93210, Aluminum Long Barrel Compression Splices #6 Awg
Couldn't load pickup availability
Morris Products 93210, Aluminum Long Barrel Compression Splices #6 Awg
-
Dimensions
-
MaterialHigh-Conductivity Seamless Aluminum
-
Material TypeAluminum
-
Connector TypeCompression Splices
-
Electrical Supplies TypeCompression Connectors and Terminals, Aluminum Compression Lugs and Splices, Aluminum Long Barrel Compression Splices
-
Maximum Voltage
-
Wire Range6 Str.
-
UL Listed
-
Brand
-
Part Number
-
UPC
-
SKU
The Morris Products 93210 Aluminum Long Barrel Compression Splice is designed for secure, high-conductivity electrical connections in power distribution, grounding, and industrial wiring applications. These compression splices are AL9CU dual-rated, allowing them to safely connect both aluminum and copper conductors. Manufactured from high-conductivity seamless aluminum and finished with bright electro-tin plating, they provide excellent corrosion resistance and long-term electrical reliability.
The long barrel design allows for multiple crimp locations, improving mechanical strength and electrical conductivity while ensuring a dependable connection in demanding installations. Each connector includes a center stop for proper cable insertion, along with clear crimp marks and die index markings to simplify installation and help ensure proper compression.
Morris aluminum compression splices are widely used by electricians, contractors, and utility professionals for conductor splicing in panels, switchgear, service equipment, and industrial electrical systems.
Key Features
- Designed for #6 AWG stranded conductors
- AL9CU dual rated – compatible with aluminum and copper conductors
- Manufactured from high-conductivity seamless aluminum
- Electro-tin plated to resist corrosion and reduce contact resistance
- Oxide inhibitor filled and capped barrel for improved performance
- Long barrel design allows multiple crimps for strong mechanical connection
- Center stop ensures proper cable positioning
- Color coded and die-indexed for easy identification and correct crimping
- UL 486B Listed (AL9CU) and cULus approved
- Rated for up to 35 kV when properly installed
Connector Dimensions
| Catalog Number | Wire Range | Color Code | Insert Diameter | Outer Diameter | Length |
|---|---|---|---|---|---|
| 93210 | 6 AWG Stranded | Gray | 0.20 in (5.0 mm) | 0.34 in (8.6 mm) | 1.63 in (41.4 mm) |
Typical Applications
- Electrical conductor splicing
- Service entrance and distribution wiring
- Switchgear and panelboard installations
- Industrial and commercial electrical systems
- Utility and power distribution connections
When properly installed using the correct compression die and tool, Morris aluminum compression splices provide a durable, low-resistance connection designed to perform reliably in demanding electrical environments.
