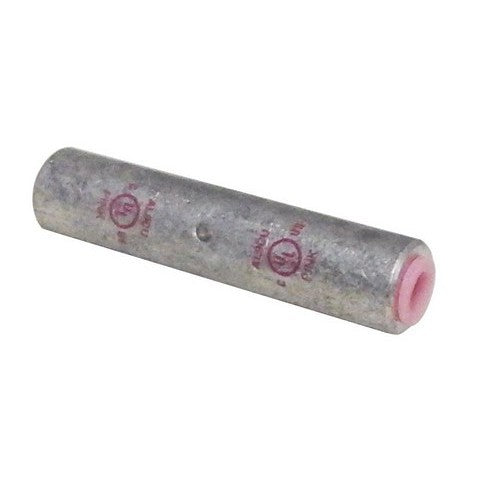

Morris Products 93218 Aluminum Long Barrel Compression Splice – 1/0 AWG
Couldn't load pickup availability
Morris Products 93218 Aluminum Long Barrel Compression Splice – 1/0...
-
Dimensions
-
MaterialHigh-Conductivity Seamless Aluminum
-
Material TypeAluminum
-
Connector TypeCompression Splices
-
Electrical Supplies TypeCompression Connectors and Terminals, Aluminum Compression Lugs and Splices, Aluminum Long Barrel Compression Splices
-
Maximum Voltage
-
Wire Range1/0 Str.
-
UL Listed
-
Brand
-
Part Number
-
UPC
-
SKU
The Morris Products 93218 Aluminum Long Barrel Compression Splice is designed for reliable, high-conductivity conductor splicing in commercial, industrial, and utility electrical systems. Manufactured from high-conductivity seamless aluminum and finished with uniform electro-tin plating, this connector helps resist corrosion while supporting long-term electrical performance.
This compression splice is AL9CU dual rated, making it suitable for use with both aluminum and copper conductors. Its long barrel design allows for multiple compression crimps, helping improve pull-out strength and maximize conductivity for a secure, dependable connection.
The barrel is pre-filled with oxide inhibitor and capped to help reduce oxidation and maintain conductivity over time. It is also color coded and marked with die index and crimp marks to support proper identification and installation in the field.
Key Features
- Designed for 1/0 AWG stranded conductors
- AL9CU dual rated for use with copper or aluminum conductors
- Manufactured from high-conductivity seamless aluminum
- Electro-tin plated for corrosion resistance
- Long barrel design supports multiple compression crimps
- Oxide inhibitor filled and capped barrel
- Center stop helps ensure proper conductor insertion
- Color coded for easy identification
- Marked with die index and crimp marks
- UL 486B Listed
- cULus approved
- Rated up to 35 kV when properly installed
Connector Dimensions
| Catalog Number | Wire Range | Color Code | Insert Diameter | Outer Diameter | Length |
|---|---|---|---|---|---|
| 93218 | 1/0 Str. | Tan | 0.39 in (9.9 mm) | 0.63 in (16.0 mm) | 2.50 in (63.5 mm) |
Typical Applications
- Electrical conductor splicing
- Power distribution systems
- Commercial and industrial wiring
- Panel and switchgear installations
- Utility and infrastructure electrical work
When installed with the proper compression tool and matching die, the Morris 93218 long barrel compression splice provides a durable mechanical bond and a low-resistance electrical path for demanding electrical applications.
