Morris Products | SKU:
Morris-91310
48% off
New arrival

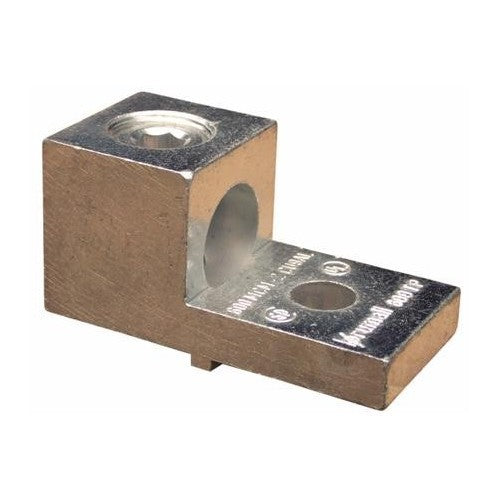

Morris Products 91310, Aluminum Lugs with Turn Prevent One Conductor #2-#14 Awg
$1.97 USD
$3.81
Unit price
/
Unavailable
Couldn't load pickup availability
Morris Products 91310, Aluminum Lugs with Turn Prevent One Conducto...
$1.97 USD
$3.81
Unit price
/
Unavailable
-
MaterialAluminum
-
Electrical Supplies TypeAluminum Lugs with Turn Prevent One Conductor, Aluminum Mechanical Lugs
-
UL Listed
-
Brand
-
Part Number
-
UPC
-
SKU
Aluminum Lugs with Turn Prevent One Conductor #2 - #14 AWG
The Morris Products 91310 Aluminum Turn Prevent Lug is designed to prevent movement of the connector while tightening the set screw. Manufactured from 6061-T6 aluminum alloy with a tin plated finish, it provides low contact resistance and corrosion protection for copper and aluminum conductors.
- Aluminum Set Screw Connectors with a Turn Prevent on the bottom of the tang to eliminate potential movement of the connector
- Made of 6061-T6 Aluminum Alloy
- Tin Plated for Low Contact Resistance and Corrosion Protection
- Suitable for use with both Copper and Aluminum Conductors
- Rated for Use with 194°F (90°C) Cables
- 1 Conductor Turn Prevent Lug rated 600V
- cULus Listed
Product Details
| Catalog Number | 91310 | Wire Range | #2 - #14 AWG |
| Length | 1.16" | Width | 0.50" |
| Height | 0.55" | Bolt | 0.25" |
| Turn Prevent to Mtg. Hole Center | 0.50" | Voltage Rating | 600V |
| Temperature Rating | 194°F (90°C) | Conductors | Copper and Aluminum |
| Material | 6061-T6 Aluminum Alloy | Finish | Tin Plated |
| Listing | cULus Listed | Number of Conductors | 1 |
