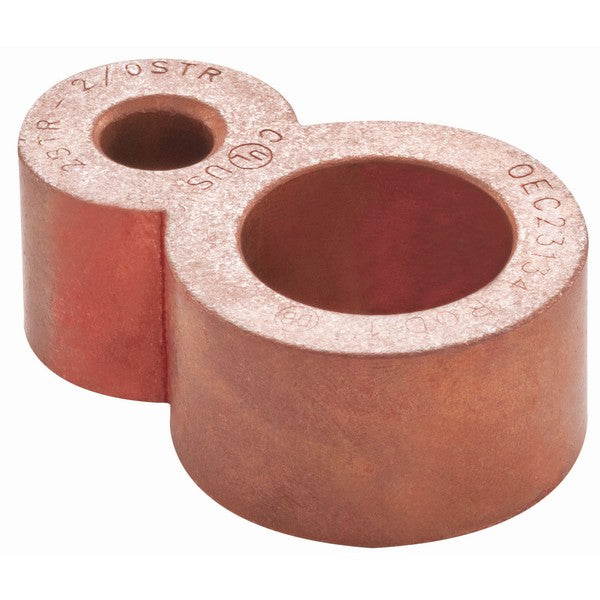

Morris Products 91500, Figure 8 Irreversible Grounding 1/2" #2-2/0, Pure Electrolytic Copper

The Morris Products 91500 Figure 8 Irreversible Grounding Connector is designed to create a permanent, low-resistance connection between grounding conductors and ground rods or rebar. Built for reliability in demanding environments, this connector is suitable for direct burial in both earth and concrete.

Manufactured from high-conductivity pure electrolytic copper, the 91500 grounding connector delivers excellent electrical performance while maintaining long-term durability and corrosion resistance. Its irreversible compression design ensures a secure, maintenance-free connection that will not loosen over time.

This connector is commonly used to create tap or pigtail connections from ground rods to grounding grids or counterpoise systems. It is suitable for use with copperweld and copper-clad cable, making it a versatile solution for residential, commercial, and industrial grounding applications.

Key Features:

• Figure 8 irreversible grounding connector for permanent bonding
• Designed for 1/2" ground rods or rebar
• Compatible with #2 to 2/0 AWG conductors
• Manufactured from pure electrolytic copper for high conductivity
• Suitable for use with copperweld and copper-clad cable
• Direct burial rated for use in earth and concrete
• Provides secure tap or pigtail grounding connections
• UL 467 listed, CSA certified, and meets IEEE 837 standards

The Morris 91500 grounding connector is a dependable choice for professional grounding systems where a permanent, high-performance connection is required.

Product Specifications:
