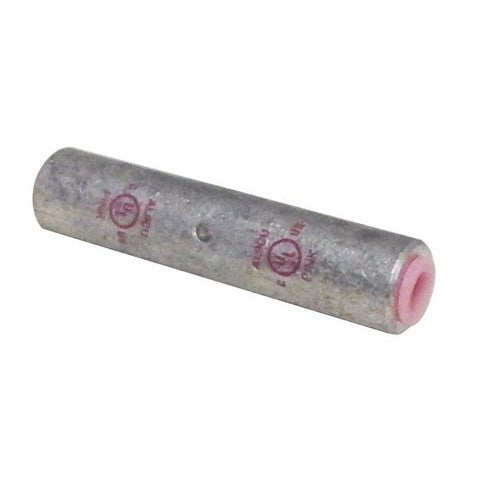

Morris Products 93238, Aluminum Long Barrel Compression Splices 750 MCM

The Morris Products 93238 Aluminum Long Barrel Compression Splice is designed for high-capacity conductor splicing in commercial, industrial, and utility electrical systems. Manufactured from high-conductivity seamless aluminum and finished with uniform electro-tin plating, this connector provides strong conductivity, corrosion resistance, and dependable long-term performance in demanding applications.

This compression splice is AL9CU dual rated, making it suitable for use with both aluminum and copper conductors. Its long barrel design allows for multiple compression crimps, helping improve pull-out strength and maximize conductivity for a secure, reliable connection.

The barrel is coated with oxide inhibitor to help reduce oxidation and support long-term conductivity. It is also color coded and marked with die index and crimp marks for quick identification and proper installation in the field.

Key Features

• Designed for 750 MCM conductors
• AL9CU dual rated for use with copper or aluminum conductors
• Manufactured from high-conductivity seamless aluminum
• Electro-tin plated for corrosion resistance
• Long barrel design supports multiple compression crimps
• Coated with oxide inhibitor to help reduce oxidation
• Center stop helps ensure proper conductor insertion
• Color coded for easy identification
• Marked with die index and crimp marks
• UL 486B Listed
• cULus approved
• Rated up to 35 kV when properly installed

Connector Dimensions

Typical Applications

• Electrical conductor splicing
• High-capacity power distribution systems
• Commercial and industrial wiring
• Switchgear and panel installations
• Utility and infrastructure electrical work

When installed with the proper compression tool and matching die, the Morris 93238 long barrel compression splice provides a durable mechanical bond and a low-resistance electrical path for demanding electrical applications.
