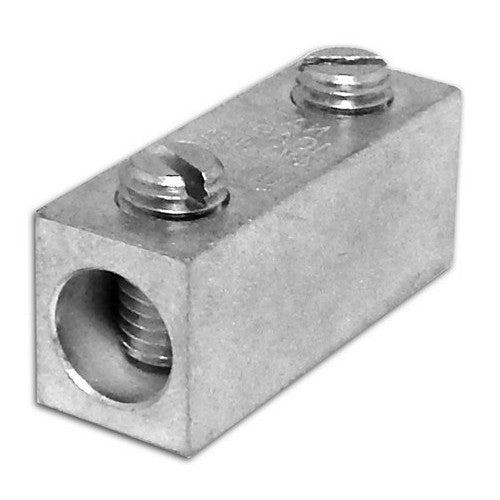

Morris Products 90615, 2 Screw Aluminum Splice for Copper and Aluminum Cable.
Couldn't load pickup availability
Morris Products 90615, 2 Screw Aluminum Splice for Copper and Alumi...
-
Connector TypeAluminum Splices
-
Electrical Supplies TypeMechanical Connectors
-
UL Listed
-
Brand
-
Part Number
-
UPC
-
SKU
Morris Products 90615 – 2-Screw Aluminum Splice/Reducer (AL9CU) is a dual-rated mechanical connector designed for joining copper or aluminum conductors with secure, low-resistance performance. Built from high-strength 6061-T6 aluminum and electro-tin plated for durability, this connector is suitable for a wide range of electrical splicing applications.
Key Features
- Dual-rated for copper and aluminum conductors (AL9CU)
- Electro-tin plated finish for maximum corrosion resistance and conductivity
- Two-screw mechanical design allows easy installation and reuse
- Rated 600 V and 90 °C (194 °F)
- UL 486B Listed and CSA Certified
Additional Specifications
Attribute |
Details |
|---|---|
| Material | 6061-T6 Aluminum, Electro-Tin Plated |
| Conductor Range | 2/0 AWG – 8 AWG (Copper or Aluminum) |
| Connection Type | Mechanical Splice / Reducer, Two-Screw |
| Voltage / Temperature Rating | 600 V / 90 °C (194 °F) |
| Fasteners | 2 Screws – Slotted/Hex Head |
| Approximate Dimensions (L × W × H) | 1.59" × 0.56" × 0.70" |
Applications
Ideal for splicing or reducing copper and aluminum conductors in electrical panels, junction boxes, control cabinets, and service equipment. Commonly used in residential, commercial, and light industrial wiring systems requiring dual-rated connectors.
