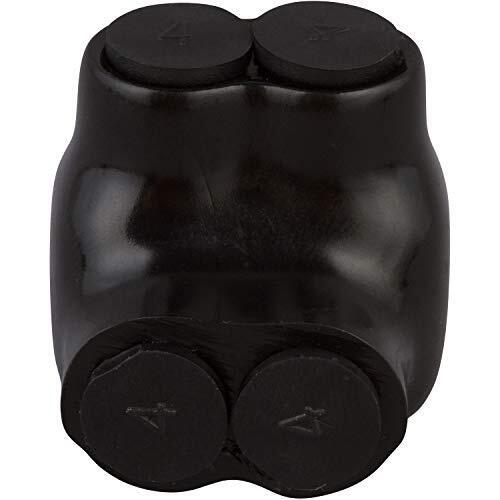

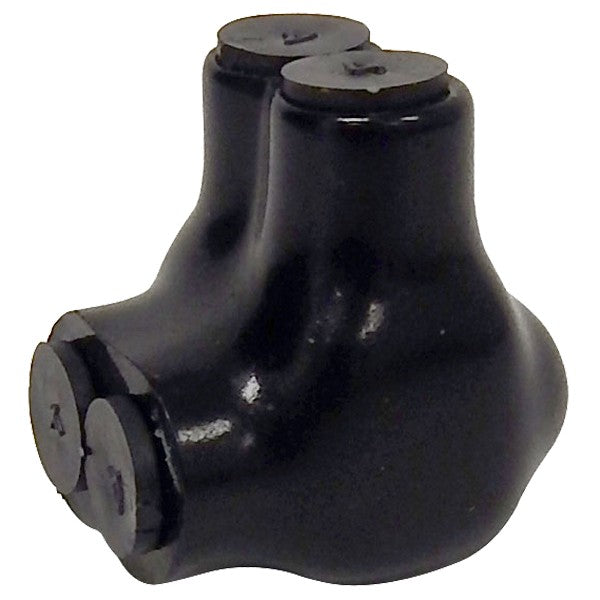

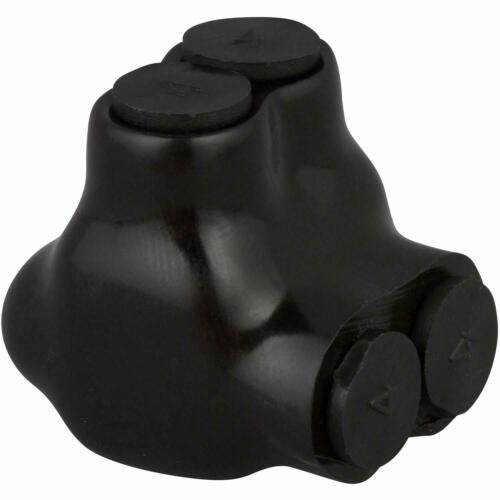

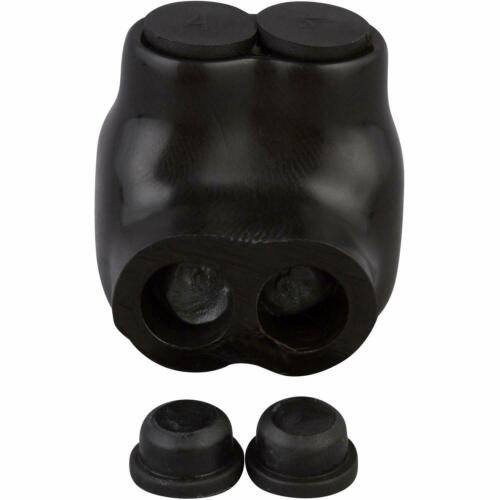

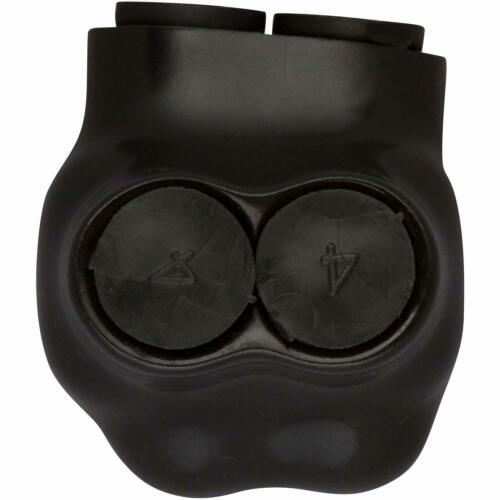

Morris Products 97102 Black Insulated 2 Conductor Single Side Entry Splice 4 - 14

Morris Products 97102 — Black Insulated 2-Conductor Single-Side Entry Connector (4 — 14 AWG)

The Morris 97102 insulated single-side entry connector provides a compact, heavy-duty solution for splicing two conductors where both wires enter from the same side. Made from dual-rated 6061-T6 aluminum and protected with a rugged high-dielectric rubber/vinyl jacket, the 97102 is pre-filled with oxide inhibitor for long-term reliability and easy re-entry for inspection or troubleshooting.

• Manufacturer / Model: Morris Products 97102
• Type: Single-side entry insulated splice / 2-conductor connector
• Wire Range: 4 AWG — 14 AWG
• Conductor Material: 6061-T6 aluminum (CU9AL dual rated for use with copper and/or aluminum)
• Insulation: Rugged high-dielectric rubber/vinyl coating
• Voltage Rating: 600 V
• Temperature Rating: −49°F to 194°F (−45°C to 90°C); 90°C rated
• Standards / Listings: UL 486B / cULus (listed)
• Features: Pre-filled with oxide inhibitor, plugs marked with connector max wire size for easy identification, easy re-entry for changes/inspection, one wire per terminal
• Typical Applications: Electrical splices in industrial, commercial and residential wiring where a compact, insulated aluminum/copper splice is required
• Dimensions (approx.): Length 1.13" × Width 1.25" × Height 1.38"
• UPC / Barcode: 601986971027

Installation notes: Torque per manufacturer recommendations; install one conductor per terminal and ensure insulation boot fully covers the aluminum body. Re-entry is simple for inspection or service—remove insulation cover, inspect or adjust, then reseat cover.

Why choose the 97102: Dual-rated aluminum construction for compatibility with copper or aluminum conductors, rugged insulated jacket for safer handling, and factory oxide inhibitor for improved corrosion resistance—making it a reliable, compact choice for common splicing needs.
