Morris Products 97118, Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 250 - 6
Couldn't load pickup availability
Morris Products 97118, Black Insulated 2 Conductor Dual Entry Splic...
-
Dimensions
-
ColorBlack
-
MaterialAluminum, Rubber
-
Connector TypeDual Entry
-
Electrical Supplies TypeInsulated Connectors
-
Insulation TypeRubber
-
Maximum Voltage
-
Temperature Rating
-
Wire Range250-6
-
Number of Ports
-
UL Listed
-
Brand
-
Part Number
-
UPC
-
SKU

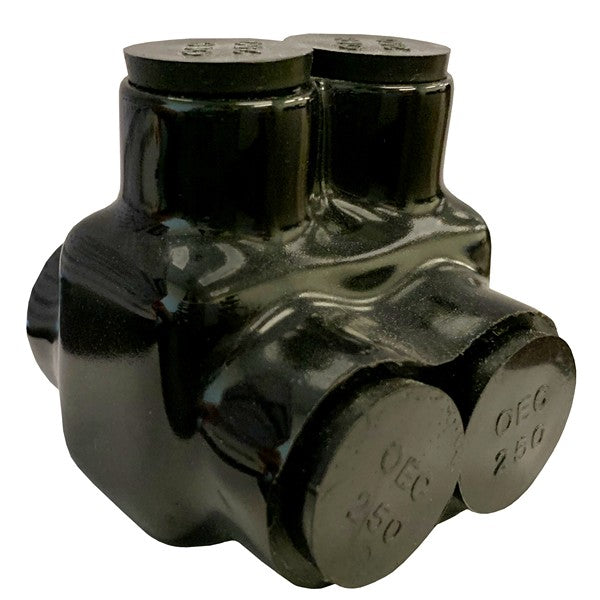

Morris Products 97118 – Black Insulated 2-Conductor Dual-Entry Connector (250 kcmil to #6)
The Morris Products 97118 dual-entry insulated connector is engineered to deliver reliable, professional-grade performance for splicing large conductors in industrial, commercial, and utility applications. Ideal for overhead, underground, and enclosed power distribution systems, this connector features a rugged aluminum body, weather-resistant insulation, and dual entry ports for flexible installation.
Key Features
- Dual-entry design permits cable access from either side — ideal for retrofit, change-outs, or future expansions.
- Constructed of 6061-T6 plated aluminum and dual-rated for use with both copper and aluminum conductors (CU/AL).
- Insulated with a high-dielectric rubber/vinyl coating for durability and added protection in demanding environments.
- Prefilled with oxide-inhibitor compound to prevent corrosion and ensure long-term reliability.
- Rated for up to 600 Volts AC (600 VAC) and a temperature range from -49 °F to 194 °F (-45 °C to 90 °C) for harsh-environment applications.
- Connector body is pre-marked with the maximum wire size for quick visual identification on-site.
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 97118 |
| UPC / GTIN | 601986971188 |
| Wire Range | 250 kcmil (250 MCM) to #6 AWG (2-conductor) |
| Number of Ports | 2 |
| Conductor Types Supported | Copper or Aluminum (CU/AL dual-rated) |
| Voltage Rating | 600 VAC Maximum |
| Temperature Rating | -49 °F to 194 °F (-45 °C to 90 °C) |
| Insulator Material / Coating | Rubber/Vinyl high‐dielectric coating |
| Body Material | 6061-T6 plated aluminum |
| Dimensions (L × W × H) | 2.20″ × 2.41″ × 2.22″ (≈ 55.9 mm × 61.2 mm × 56.4 mm) |
| Allen Hex Size | 5/16″ (for set screws) |
| Certifications | UL 486B / ANSI C119.4, cULus listed (dual-rated) |
Applications & Advantages
This connector is optimized for splicing large‐gauge cables in power-distribution environments where reliability and ease of installation are critical. The dual-entry configuration simplifies field wiring by allowing conductors to enter from either side of the connector body, enabling flexibility during system upgrades, retrofits, or maintenance operations.
With the corrosion-inhibiting filler and rugged insulation, the 97118 is well suited for indoor and protected outdoor installations where exposure to moisture, vibration, or thermal cycling may be encountered. The dual-rating (CU/AL) makes it versatile for mixed conductor systems, reducing the need for multiple connector types.
Installation Notes
- Ensure that both conductors are properly inserted one per port and the insulation material is intact before tightening the set screws.
- Use a 5/16″ Allen wrench to tighten set screws to manufacturer-specified torque (refer to installation instructions provided by Morris Products).
- After tightening, verify that the insulator fully covers the aluminum body and that no bare metal is exposed.
- Suitable for use in conduit, trough, cable-tray, underground vaults, and other power distribution environments rated up to 600 V.
Why Choose This Connector?
By selecting the Morris Products 97118, you get a pre-filled, UL/cUL listed connector with built-in corrosion resistance and an insulated body that saves time on taping or additional insulation. The dual-entry design and dual-rated conductor support provide field efficiency and stocking flexibility, making it an excellent choice for electrical contractors, system integrators, and utility maintenance crews.
Note: Always comply with applicable local codes, manufacturer installation instructions, and torque specifications when installing mechanical connectors.
