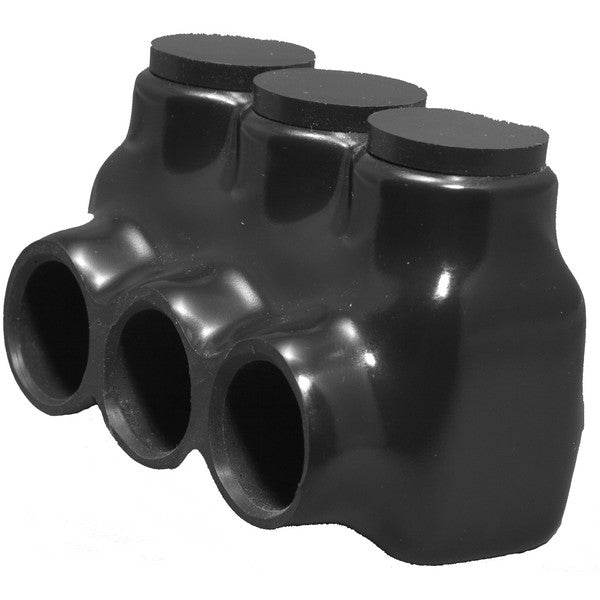

Morris Products 97519, Black Insulated Multi-Cable Connector - Single Entry 3 Ports 2 - 14

Product Overview

Enhance your electrical installations with the Morris Products 97519 Black Insulated Multi-Cable Connector. Designed for durability and reliability, this connector is ideal for splicing and tapping applications where secure, insulated connections are essential. Featuring a single-entry design with three ports, it accommodates wire sizes from 2 AWG to 14 AWG, making it versatile for various electrical projects.

Key Features

• Material Composition: Constructed from high-quality 6061-T6 aluminum (CU9AL dual rated), suitable for both copper and aluminum conductors.
• Insulation: Coated with a rugged, high-dielectric rubber/vinyl blend, providing robust protection against environmental factors.
• Pre-Filled with Oxide Inhibitor: Ensures long-term conductivity and prevents corrosion at connection points.
• Temperature Range: Operates effectively in temperatures ranging from –49°F to 194°F (–45°C to 90°C), suitable for a wide range of environments.
• Voltage Rating: Rated for 600 volts, accommodating standard residential and commercial electrical systems.
• Compliance: Meets ANSI C119.4 and cULus 486B standards, ensuring safety and performance.
• Easy Re-Entry Design: Facilitates quick changes, inspections, or troubleshooting without the need for complete disassembly.
• Wire Entry: Features a single side entry with three ports, allowing for one wire per terminal for secure connections.
• Clear Markings: Each connector is clearly marked with the maximum wire size for easy identification during installation.

Specifications

• Dimensions: 1.60" (L) x 1.50" (H)
• Color: Black
• Material: 6061-T6 Aluminum
• Insulation Type: Rubber/Vinyl Coating
• Wire Range: 2 AWG to 14 AWG
• Voltage Rating: 600 Volts
• Temperature Rating: –49°F to 194°F (–45°C to 90°C)
• Connector Type: Single Entry, 3 Ports
• Compliance: ANSI C119.4, cULus 486B
• UPC: 601986975193

Applications

The Morris Products 97519 Black Insulated Multi-Cable Connector is ideal for:

• Residential and commercial electrical systems requiring secure wire connections.
• Splicing and tapping applications where insulation and corrosion resistance are critical.
• Environments with varying temperatures, ensuring consistent performance across a wide range.
• Projects that demand compliance with industry standards for safety and reliability.

Installation Tips

• Ensure all wires are stripped to the appropriate length before insertion to maintain a secure connection.
• Use the connector's clear markings to verify the maximum wire size for each port.
• After installation, check that each terminal is tightly secured to prevent any loose connections.
• Regularly inspect connectors for signs of wear or corrosion, especially in outdoor or harsh environments.
